A professional, high-output sound reinforcement loudspeaker designed to deliver accurate, highly-intelligible audio for moderate to large sized indoor spaces. Works integrally with Crestron Avia™ Digital Signal Processing to produce exceptional results quickly. Advanced integrated coaxial transducer technology affords very high performance in less space.
The Vector CS699 is ideal for smaller rooms and short-throw applications such as front fill, delay fill, under-balcony, control room, and background music.
Crestron® Vector™ Performance Loudspeakers provide a professional sound reinforcement speaker solution for large indoor spaces and venues. Featuring a revolutionary coaxial transducer design complemented by advanced Avia™ digital signal processing, Vector loudspeakers deliver exceptional intelligibility and natural sound quality for speech reinforcement, foreground music, and multimedia presentation applications. Compact, aesthetically-pleasing enclosures afford remarkable performance in less space. A choice of sizes and coverage patterns is offered to address the varying applications and room geometries found in auditoriums, theaters, lecture halls, houses of worship, convention centers, hotel ballrooms, sports facilities, night clubs, and public spaces.

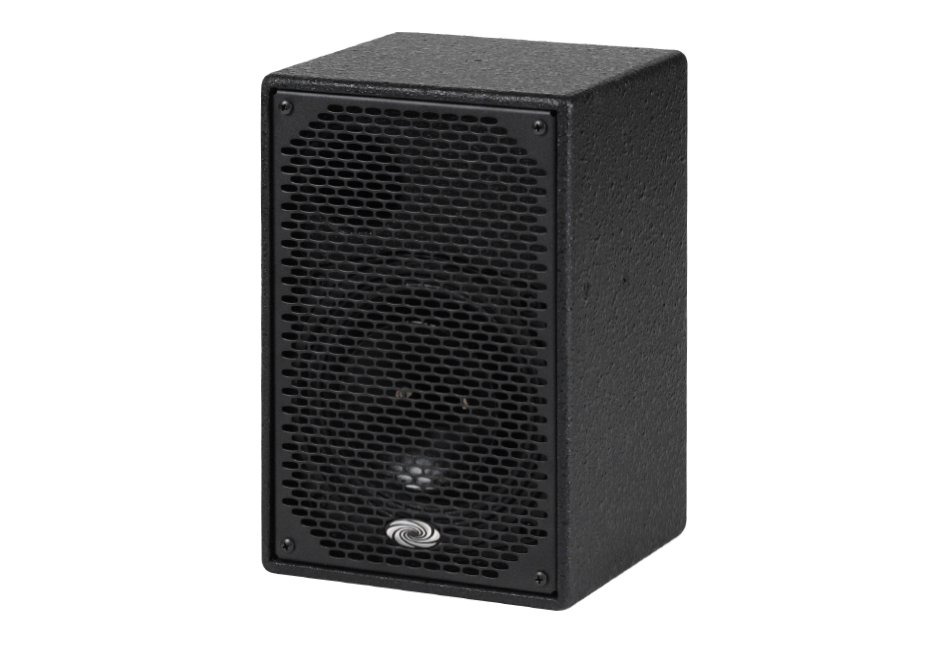

The Vector CS699 is a very compact speaker enclosure loaded with one 2-way coaxial transducer composed of a 6.5” (165 mm) LF driver and a 90° x 90° HF horn with 1” (25 mm) diaphragm compression driver. Advanced engineering and construction of the complete speaker achieves a highly space-efficient design with unusually high output capability and consistent off-axis response. Its coaxial transducer aligns the low-frequency and high-frequency elements to produce precise transient response and uniform directionality.
- A compact, professional performance loudspeaker for small rooms and fill applications
- High-performance 6.5” (165 mm) coaxial transducer with 90° x 90° HF horn
- High-frequency compression driver with 1 inch (25 mm) diaphragm
- Delivers superior performance in combination with an Avia™ DSP
- Precisely tuned for accurate, uncolored sound reproduction
- Produces high intelligibility and natural sound quality for speech and program material
- Achieves smooth bandwidth performance both within and beyond the specified coverage pattern
- Uniform directionality affords consistent, targeted pattern control
- Capable of relatively high SPLs without coloration or distortion
- Affords a clean, unimposing appearance in tight spaces
- Ruggedly constructed for maximum reliability
- Optional yoke bracket available separately
- Compatible with third-party speaker mounts
- Neutrik® speakON® input and pass-through connections
- 16 Ohm nominal impedance
